Industrial-grade anti-smog gun machines with advanced ultrasonic atomization technology for effective dust control and air quality management in construction sites, mining operations, and industrial facilities β ensuring CPCB compliance and worker safety.
Request Bulk Quote β

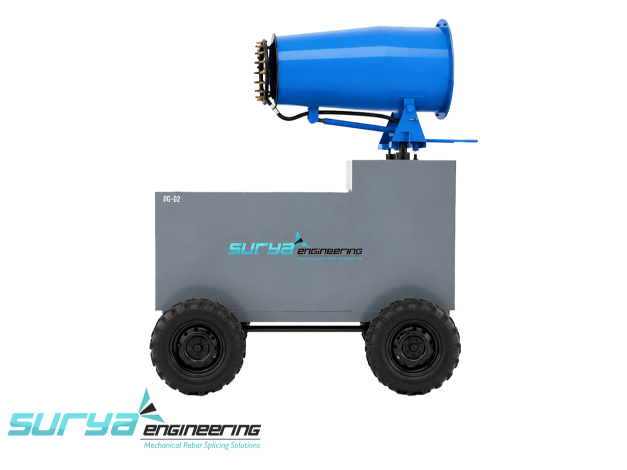

An Anti-Smog Gun is a heavy-duty airborne dust suppression system designed to spray an ultra-fine water mist over large open areas. The machine combines a high-pressure water pump, a ring of specially designed micro-nozzles, and a high-velocity axial fan motor.
When pressurized water passes through the atomizing nozzles, it breaks into airborne water droplets measuring roughly 10 microns. Because these droplets match the physical size of suspended dust particles (PM2.5 / PM10), they attach to the dust grains upon contact. The added weight causes the dust particles to fall to the ground via gravity, preventing them from traveling off-site or being inhaled by workers.
These machines are also commonly known as:
Anti-Smog Gun Machines are widely used in:
In major infrastructure developments, demolition zones, and mineral processing units, conventional hose-sprinkling wastes thousands of liters of water while failing to capture airborne dust. Modern anti-smog gun machines deliver distinct operational advantages for environmental compliance and worker safety.
| Parameter | Specification |
|---|---|
| Product Name | Heavy-Duty Anti-Smog Gun Machine |
| Mist Throw Range | 30m, 50m, 75m, 100m+ (Custom throw ranges available) |
| Droplet Size | 10 - 50 Microns (Ultra-fine micro-mist) |
| Operating Pressure | 70 to 100 Bar High-Pressure System |
| Fan Motor Power | 5.5 HP - 20 HP Heavy-Duty Axial Motor |
| Water Pump Power | 3 HP - 7.5 HP High-Pressure Booster Pump |
| Horizontal Oscillation | 0Β° to 340Β° (Automated motorized rotation) |
| Vertical Elevation | 0Β° to 60Β° Adjustable Angle |
| Atomizing Nozzles | Stainless Steel / Brass Anti-Clogging Nozzles (24 - 48 Nos.) |
| Mounting Configurations | Trolley-Mounted, Skid-Mounted, Truck-Mounted, Tower-Mounted |
| Control System | Semi-Automatic / Fully Automatic with Remote Control |
| Water Consumption | 20 - 60 Liters per Minute |
Anti-Smog Gun Machines are available in multiple mounting configurations to suit varied site mobility and placement requirements across India.
Applications
Applications
Applications
Applications
Applications
Applications
Anti-Smog Gun Machines are deployed across diverse high-dust sectors throughout India for effective air quality management and worker protection.
| Industry Sector | Primary Application | Key Benefit |
|---|---|---|
| Civil Construction & Real Estate | High-rise building sites, excavation zones | Environmental compliance |
| Demolition & C&D Waste | Building implosion dust suppression | Concrete dust control |
| Mining & Material Handling | Open-cast mines, coal yards | Worker health protection |
| Stone Crushers & Quarries | Silica and stone dust suppression | Occupational safety |
| Municipal Corporations | Urban smog control, road dust | Air quality improvement |
| Cement & Thermal Power Plants | Raw material handling emissions | Emission reduction |
| Aggregate Stockyards | Material transfer dust control | Dust prevention |
| Infrastructure Projects | Flyover, highway construction | Dust management |
Operating an anti-smog gun machine requires proper positioning, connection, and systematic engagement of the atomization and fan systems.
Surya Engineering subjects every manufactured Anti-Smog Gun to rigorous quality checks to ensure long operational life in harsh outdoor environments and consistent dust suppression performance.
| Test Type | Objective | Performance Verification |
|---|---|---|
| Hydrostatic Pump Test | Verifies consistent 70-100 bar pressure | No seal leaks or failure |
| Droplet Size & Pattern Analysis | Ensures uniform micro-fog production | 10-micron droplet consistency |
| Throw Distance Verification | Calibrates fan air-velocity | Guaranteed 30m to 100m+ delivery |
| Continuous Run & Vibration Test | Full load operation verification | Low vibration, thermal stability |
| Electrical Safety Test | Verifies IP-rated control panel | Safety certification compliance |
| Nozzle Clogging Test | Tests anti-clogging system | Consistent mist output |
| Motor Thermal Insulation Test | Checks motor durability | Extended operational life |
Every Anti-Smog Gun manufactured at Surya Engineering undergoes systematic quality verification to ensure reliable performance across construction sites, mining operations, and industrial facilities.
Quality Control Benefits:
Surya Engineering is an established ISO 9001:2015 certified manufacturer of construction machinery and environmental equipment based in Mumbai, Maharashtra. With decades of engineering experience, we have earned a reputation across India for quality manufacturing, technical innovation, and robust field performance. When you deal with Surya Engineering, you work directly with the OEM manufacturer.
Surya Engineering manufactures and dispatches Anti-Smog Gun Machines directly from our Mumbai production facilities to major construction, mining, and industrial locations across India. Our factory-direct distribution network ensures rapid delivery, on-site commissioning support, and lifetime spare-parts backup.
30mβ100m+ Mist Throw Range Β· 10-Micron Ultra-Fine Droplets Β· CPCB Compliant Β· Heavy-Duty Construction Β· PAN India Supply & Support
